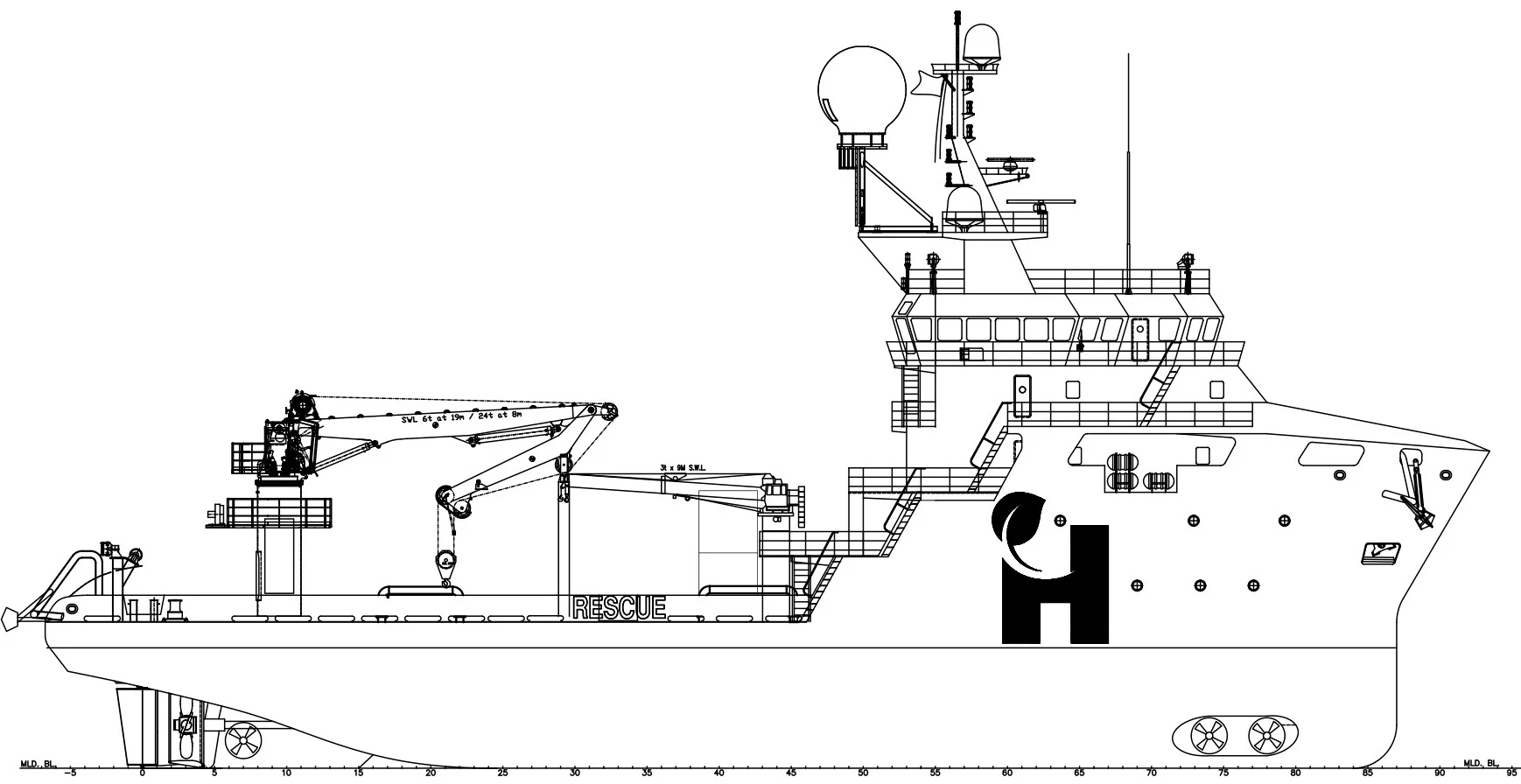

The Harvest Shine

General

Name

Harvest Shine

Type

DSV / OSV

Description

60m DP2 Dive Support Vessel / Offshore Supply Vessel

Built

2012 Fijuan

Class

Lloyds 100 A1 Offshore Supply Ship LMC, DP(AA)/SPS, DPS-2

DP Class

Class 2, LR

DP System

K-POS DP 21

4-Point Mooring

MacGregor winches with 35t on 1st Layer and 60t Holding Power 1,200m 38mm wire with 4 x 3mt High Holding Delta Flippers


Dimensions

Length Overall

60.25 m

Length B.P.P

52.20 m

Beam Moulded

14.95 m

Depth

6.10 m

Draft Summer

4.60 m

GRT

1794 t

Net Tonnage

538 t

Deadweight

992 mt


Accomodation

Total Accommodation

49

Project Accommodation

27 beds, 1 single & 13 double cabins

Crew Accommodation

22 beds

Facilities:

1 x Gym, 1 x Recreation Room, 3 x Offices


Fuel & Water

Full Speed

13.5kt @ 15mt/day

Eco Speed

11.5kts @ 11.2mt/day

DP Operations

2.5 - 6mt/day

Idle in Port

1 mt/day

MGO

481 m³

Potable Water

455 m³

Water Ballast

901 m³

Heeling Tanks

2 x 37 m³


Deck Area and Services

Clear Deck Space

330 m²

Deck Strength

7mt / m²

Moon Pool

4.8 x 3.0 m

Bulwark

Removable - Port & Starboard Side along Work Deck


Crane Lifting Equipment

Main Crane

SMST Knuckle Boom (Starboard Side)

Main Hoist Wire Length

190m wire fitted (300m maximum wire capacity)

Max Outreach SWL

Single hoist 6t@19m, Double Hoist 12t@19m, Double Hoist 24t@8m
